1N5339B-TP
Manufacturer:
Micro Commercial Components
Mfr.Part #:
1N5339B-TP
Datasheet:
Description:

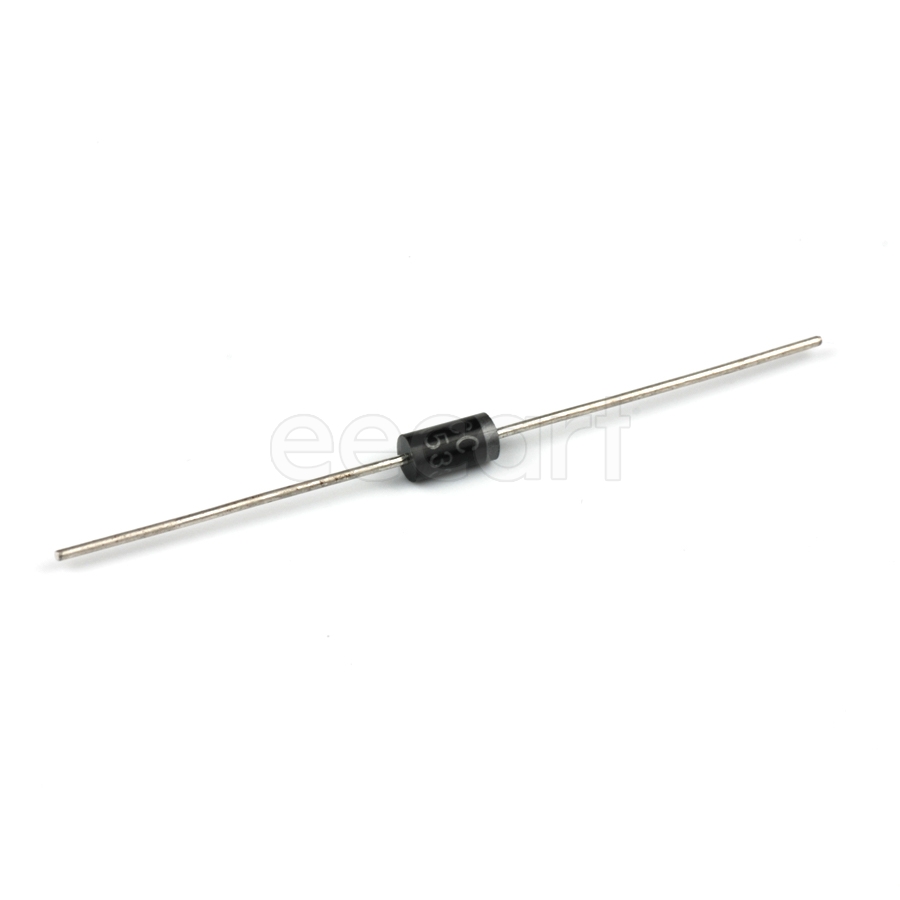

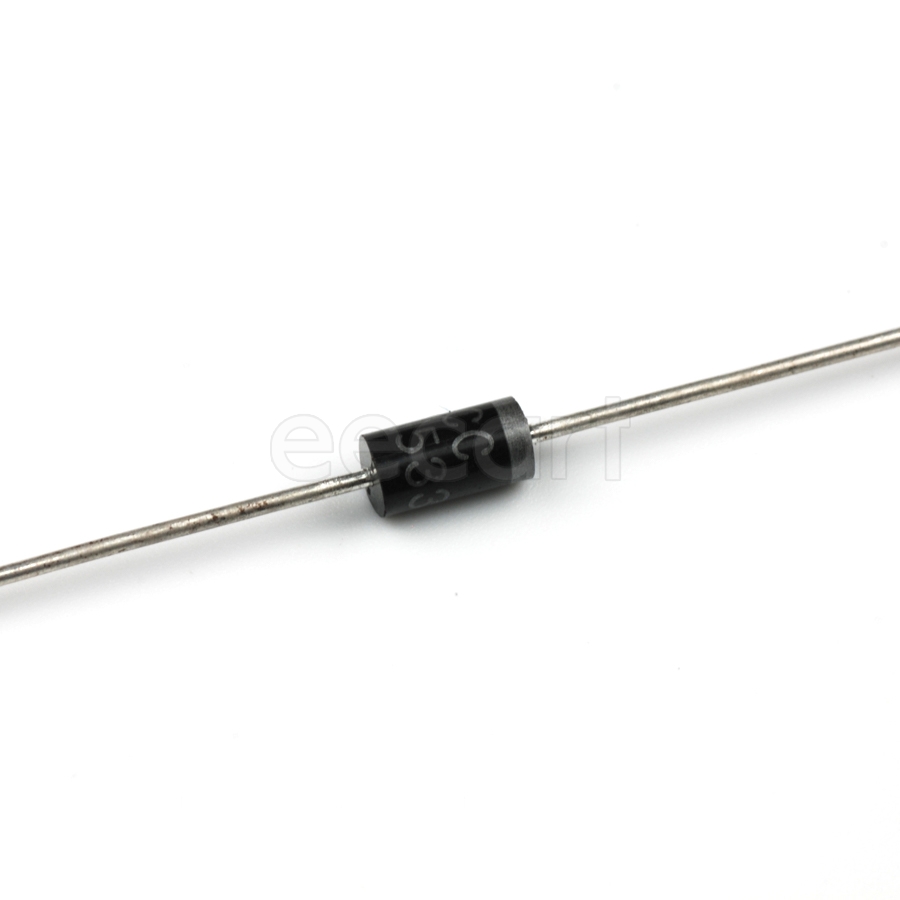

Zener Diodes DO-15 Through Hole Single Zener Voltage:5.6 V 5 % 5 W
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5.6 V |
| Tolerance | 5 % |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Power Rating | 5 W |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Impedance | 1 Ω |
| Working Voltage | 5.6 V |
| Forward Voltage | 1.2 V |
| Max Power Dissipation | 5 W |
| Power Dissipation | 5 W |
| Max Reverse Leakage Current | 1 µA |
| Zener Voltage | 5.6 V |
| Element Configuration | Single |
| Test Current | 220 mA |
| Voltage Tolerance | 5 % |
| Zener Current | 865 mA |
| Schedule B | 8541100050 |
| Peak Reverse Current | 1 µA |
Stock: 8245
Distributors
pcbx
pcbxUnit Price$0.46764
Ext.Price$0.46764
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46764 | $0.46764 |
| 10 | $0.34796 | $3.47960 |
| 25 | $0.30717 | $7.67925 |
| 50 | $0.27116 | $13.55800 |
| 100 | $0.23938 | $23.93800 |
| 300 | $0.21315 | $63.94500 |
| 500 | $0.18980 | $94.90000 |
| 1000 | $0.17440 | $174.40000 |
| 3000 | $0.15560 | $466.80000 |
